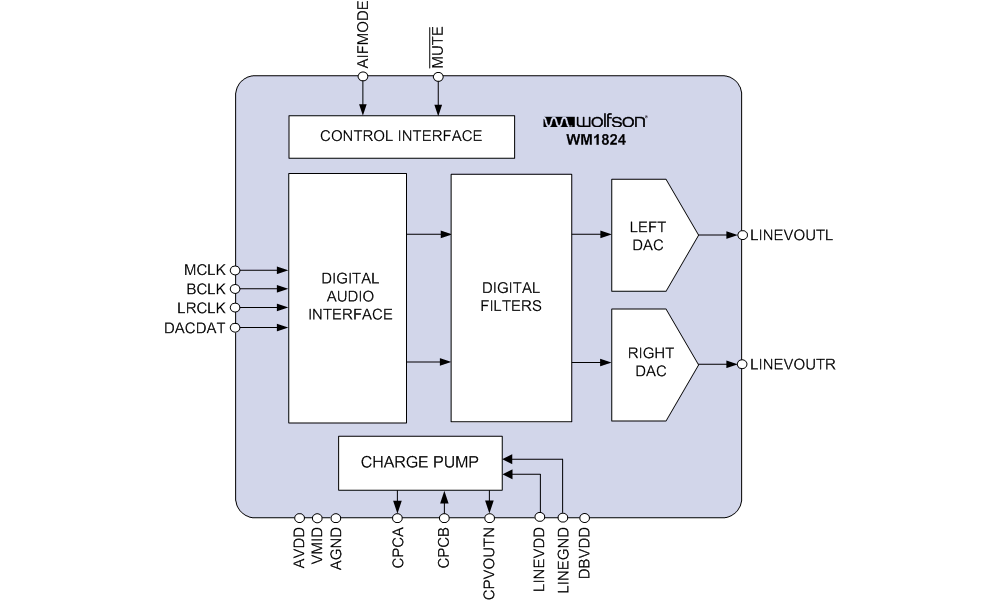

WM1824 - 产品及功能框图：
WM1824 - Stereo DAC with 2Vrms Ground Ref Line Driver
WM1824是Cirrus Logic公司的一款D/A 转换器产品，WM1824是Stereo DAC with 2Vrms Ground Ref Line Driver，本站介绍了WM1824的封装应用图解、特点和优点、功能等，并给出了与WM1824相关的Cirrus Logic元器件型号供参考。
WM1824 - Stereo DAC with 2Vrms Ground Ref Line Driver - D/A 转换器 - 音频 - Cirrus Logic
WM1824 - 产品描述
WM1824 - 产品特性
- HighperformancestereoDACwithgroundreferencedlinedriver
- AudioPerformance
- 106dBSNR('A-weighted')
- 89dBTHD@-1dBFS
- 120dBmuteattenuation
- Allcommonsampleratesfrom8kHzto192kHzsupported
- Hardwarecontrolmode
- Dataformats:LJ,I2S
- Maximum1mVDCoffsetonLineOutputs
- Pop/ClicksuppressedPowerUp/DownSequencer
- AVDD,LINEVDDandDBVDDcanoperateat+3.3V±10%allowingsinglesupply
- 24-leadQFNpackage
- Operatingtemperaturerange:-40°Cto85°C
WM1824 - 规格表
| Part | Channels | Resolution (bits) | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog Outputs | Power Supply (V) | Output Level (Vrms) | Comments | Package |
|---|---|---|---|---|---|---|---|---|---|---|
| WM1824 | 2 | 24 | 106 | -88 | 192 | Single-ended | VA=2.97to3.63; VD=1.62to3.63 | 2.1 | HW control | 24 QFN |
