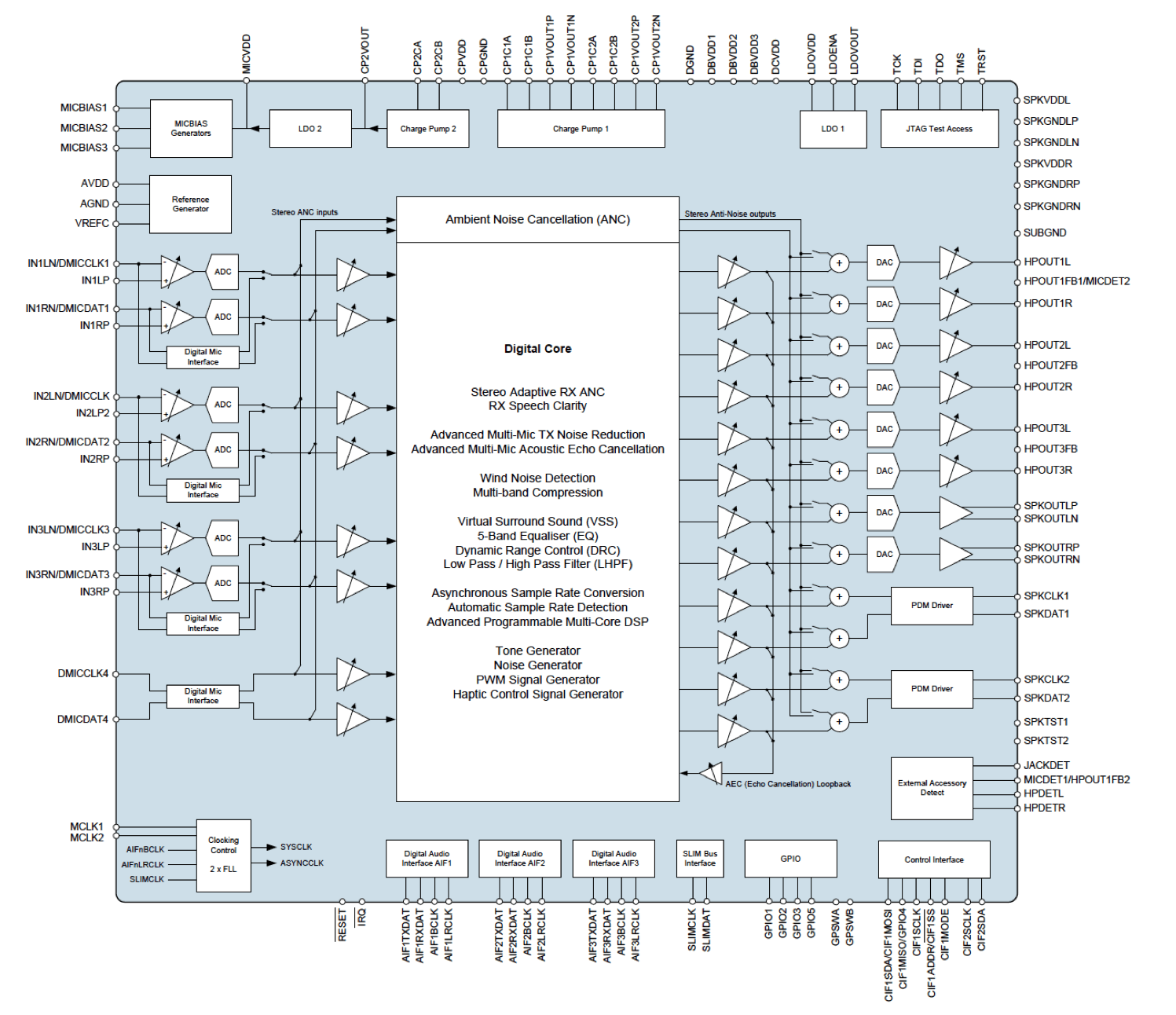

WM8281 - 产品及功能框图：
WM8281 - Low Power Smart Codec with Ambient Noise Cancellation and Echo Cancellation
WM8281是Cirrus Logic公司的一款编解码器产品，WM8281是Low Power Smart Codec with Ambient Noise Cancellation and Echo Cancellation，本站介绍了WM8281的封装应用图解、特点和优点、功能等，并给出了与WM8281相关的Cirrus Logic元器件型号供参考。
WM8281 - Low Power Smart Codec with Ambient Noise Cancellation and Echo Cancellation - 编解码器 - 音频 - Cirrus Logic
WM8281 - 产品描述
WM8281 - 产品特性
- 600MIPS,600MMCmulti-coreaudio-signalprocessor
- Programmablewideband,multi-micaudioprocessing
- Multi-channelasynchronoussamplerateconversion
- Integrated6/8channel24-bitHi-Fiaudiocodec
- Analoganddigitalmicrophoneinputs
- Multi-purposeheadphone/earpiece/lineoutputdrivers
- StereoClass-Dspeakeroutputdrivers
- Four-channeldigitalspeaker(PDM)interface
- SLIMbusaudioandcontrolinterface
- 3fulldigitalaudiointerfaces
- Flexibleclockinginterface
- Advancedaccessorydetectionfeature
- ConfigurablefunctionsonGPIOpins
- IntegratedLDOregulatorsandchargepumps
- SmallWLCSPpackage,0.4mmpitch
WM8281 - 规格表
| Part | DACs / ADCs | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog I/O | Power Supply (V) | DSP and Other Features | Package |
|---|---|---|---|---|---|---|---|---|
| WM8281 | 8/ 6 | 121DAC; 100ADC | -92DAC; -89ADC | 192 | Single-ended Differential | VA=1.7to5.5; VD=1.14to1.9 | Multi-Core, 600 MIPS | 138 WLCSP |
