    当前位置：Cirrus Logic > > Cirrus Logic芯片 >> WM8998
    WM8998技术文档下载：
    WM8998技术文档产品手册下载
    WM8998 - 产品及功能框图：

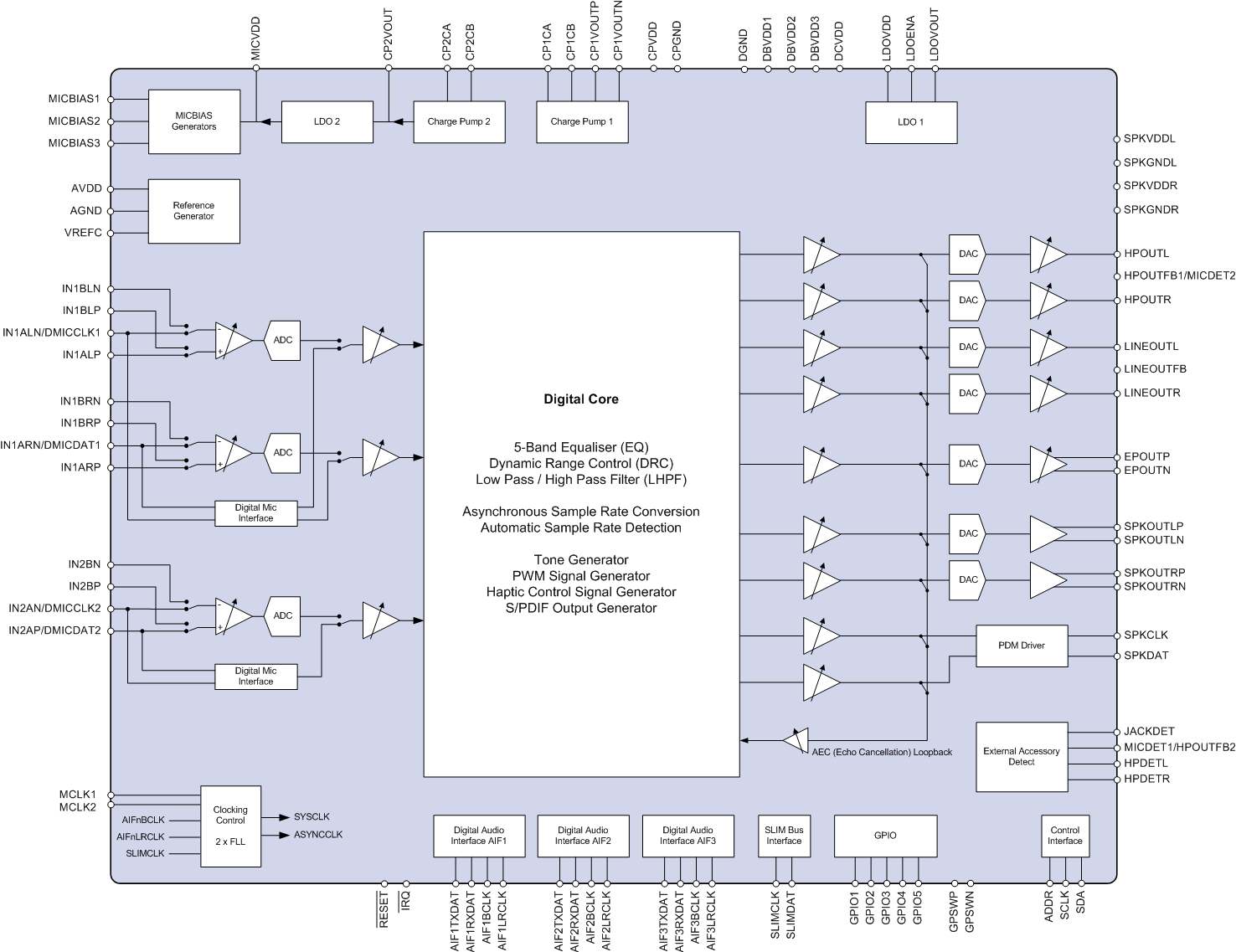

    WM8998功能框图
    WM8998 Product Datasheet
    WM8998 Product Brief
    WAN-0129 Decoupling and Layout Methodology for Wolfson DACs, ADCs and CODECs
    承诺原装正品
    专营Cirrus Logic，真正优化您的供应链
    Cirrus Logic产品 - WM8998介绍
    WM8998 - HD Audio Hub with Slimbus and 3 x I2S interfaces

    WM8998是Cirrus Logic公司的一款编解码器产品，WM8998是HD Audio Hub with Slimbus and 3 x I2S interfaces，本站介绍了WM8998的封装应用图解、特点和优点、功能等，并给出了与WM8998相关的Cirrus Logic元器件型号供参考。

    WM8998 - HD Audio Hub with Slimbus and 3 x I2S interfaces - 编解码器 - 音频 - Cirrus Logic

    WM8998 - 产品描述
    WM8998 - 产品特性
    • Hi-Fiaudiohubcodecformobileapplications
    • Digitalaudioprocessingcore
      • Fullyflexibledigitalsignalroutingandmixing
      • Windnoise,sidetoneandotherprogrammablefilters
      • DynamicRangeControl(compressor,limiter)
      • FullyparametricEQs
      • Low-pass/High-passfilters
    • Multi-channelasynchronoussamplerateconversion
    • Integratedmulti-channel24-bithi-fiaudiohubcodec
      • 3ADCs,96dBSNRmicrophoneinput(48kHz)
      • 7DACs,122dBSNRheadphoneplayback(48kHz)
    • Audioinputs
      • Upto6analogor3digitalmicrophoneinputs
      • Single-endedordifferentialmic/lineinputs
    • Stereoheadphoneoutputdriver
      • 28mWinto32?loadat0.1%THD+N
      • 6.9mWtypicalheadphoneplaybackpowerconsumption
      • Popsuppressionfunctions
      • 132μVRMSnoisefloor(A-weighted)
    • Ground-referencedlineoutputdriver
      • Stereosingle-endedorMonodifferentialconfiguration
    • MonoBTLearpieceoutputdriver
      • 100mWinto32?BTLloadat5%THD+N
    • Stereo(2x2W)ClassDspeakeroutputdrivers
      • Directdriveofexternalhapticsvibeactuators
    • Two-channeldigitalspeaker(PDM)outputinterface
    • IEC-60958-3compatibleS/PDIFtransmitter
    • SLIMbusaudioandcontrolinterface
    • 3fulldigitalaudiointerfaces
      • Standardsampleratesfrom8kHzupto192kHz
      • TDMsupportonallAIFs
      • 6channelinputandoutputonAIF1andAIF2
    • Flexibleclocking,derivedfromMCLKn,BCLKnorSLIMbus
    • 2low-powerFLLssupportreferenceclocksdownto32kHz
    • Advancedaccessorydetectionfunctions
      • Low-powerstandbymodeandconfigurablewake-up
    • Configurablefunctionson5GPIOpins
    • IntegratedLDOregulatorsandchargepumps
    • Supportforsingle1.8Vsupplyoperation
    • SmallW-CSPpackage,0.4mmpitch
    WM8998 - 规格表
    PartDACs / ADCsDynamic Range (dB)THD+N (dB)Sample Rate (kHz)Analog I/OPower Supply (V)DSP and Other FeaturesPackage
