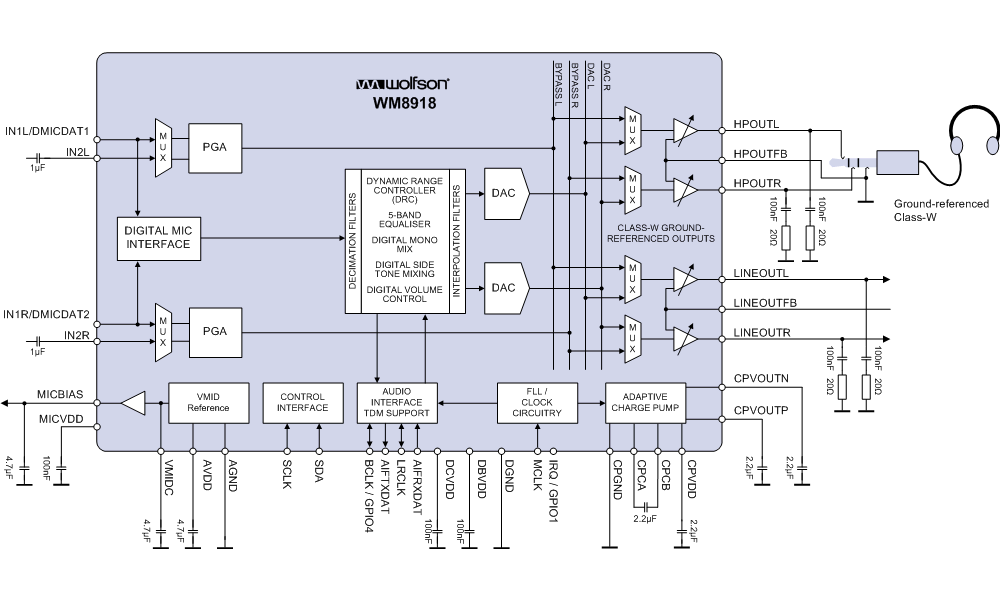

WM8918 - 产品及功能框图：
WM8918 - Ultra Low Power Stereo DAC with Headphone Driver
WM8918是Cirrus Logic公司的一款低功耗音频转换器产品，WM8918是Ultra Low Power Stereo DAC with Headphone Driver，本站介绍了WM8918的封装应用图解、特点和优点、功能等，并给出了与WM8918相关的Cirrus Logic元器件型号供参考。
WM8918 - Ultra Low Power Stereo DAC with Headphone Driver - 低功耗音频转换器 - D/A 转换器 - Cirrus Logic
WM8918 - 产品描述
WM8918 - 产品特性
- 3.8mWquiescentpowerconsumptionforDACtoheadphoneplayback
- DACSNR96dBtypical,THD-86dBtypical
- 2.4mWquiescentpowerconsumptionforanalogbypassplayback
- Controlwritesequencerforpopminimisedstart-upandshutdown
- Singleregisterwritefordefaultstart-upsequence
- IntegratedFLLprovidesallnecessaryclocks
- Self-clockingmodesallowprocessortosleep
- Allstandardsampleratesfrom8kHzto96kHz
- Stereodigitalmicrophoneinput
- 3singleendedinputsperstereochannel
- 1fullydifferentialmic/lineinputperstereochannel
- DigitalDynamicRangeController(compressor/limiter)
- Digitalsidetonemixing
- Ground-referencedheadphonedriver
- Ground-referencedlineoutputs
- 32-pinQFNpackage(4x4mm,0.4mmpitch)
WM8918 - 规格表
| Part | Channels | Resolution (bits) | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog Outputs | Power Supply (V) | Output Level (Vrms) | Comments | Package |
|---|---|---|---|---|---|---|---|---|---|---|
| WM8918 | 2 | 24 | 96 | -86 | 8?96 | Single-ended | VA=1.71to2; VD=1.42to3.6 | 1 | 5 band EQ, DRC, digital MIC interface, HP driver, FLL | 32 QFN |
