WM8805技术文档下载：

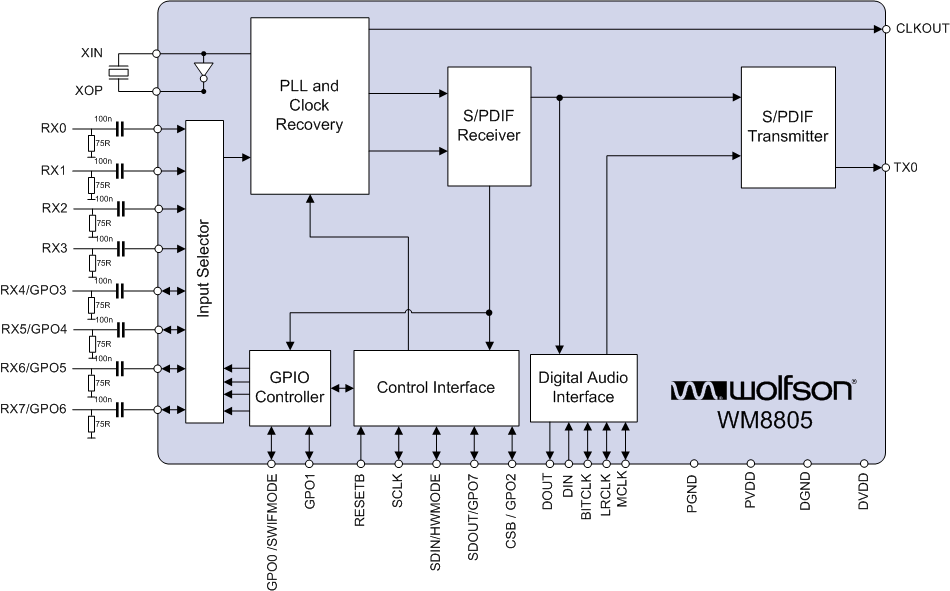

WM8805 - 产品及功能框图：
WM8805 - S/PDIF Digital Interface Transceiver
WM8805是Cirrus Logic公司的一款接口和采样率转换器产品，WM8805是S/PDIF Digital Interface Transceiver，本站介绍了WM8805的封装应用图解、特点和优点、功能等，并给出了与WM8805相关的Cirrus Logic元器件型号供参考。
WM8805 - S/PDIF Digital Interface Transceiver - 接口和采样率转换器 - 音频 - Cirrus Logic
WM8805 - 产品描述
WM8805 - 产品特性
- S/PDIF(IEC60958-3)compliant
- AdvancedjitterattenuatingPLLwithlowintrinsicperiodjitterof50psRMS
- S/PDIFrecoveredclockusingPLL,orstandalonecrystalderivedclockgeneration
- Supports10–27MHzcrystalclockfrequencies
- two-wire/three-wireserialorhardwarecontrolinterface
- ProgrammableAudiodatainterfacemodes:
- I2S,Left,RightJustifiedorDSP
- 16/20/24bitwordlengths
- 8channelreceiverinputand1channeltransmitoutput
- Autofrequencydetection/synchronisation
- Selectableoutputstatusdatabits
- Upto8configurableGPOpins
- De-emphasisflagoutput
- Non-audiodetectionincludingDOLBYandDTS
- Channelstatuschangedflag
- ConfigurableclockdistributionwithselectableoutputMCLKrateof512fs,256fs,128fsand64fs
- 2.7to3.6VdigitalandPLLsupplyvoltages
- 28-leadSSOPpackage
WM8805 - 规格表
| Part | Sample Rate (kHz) | IEC-60958, AES-3, S/PDIF TX Outputs | IEC-60958, AES-3, S/PDIF RX Inputs | On-Chip Line Driver | On-Chip SRC | Host Interface | Power Supply (V) | Package |
|---|---|---|---|---|---|---|---|---|
| WM8805 | 192 | 1 | 8 | — | — | VD=3.3 | 28 SSOP |
