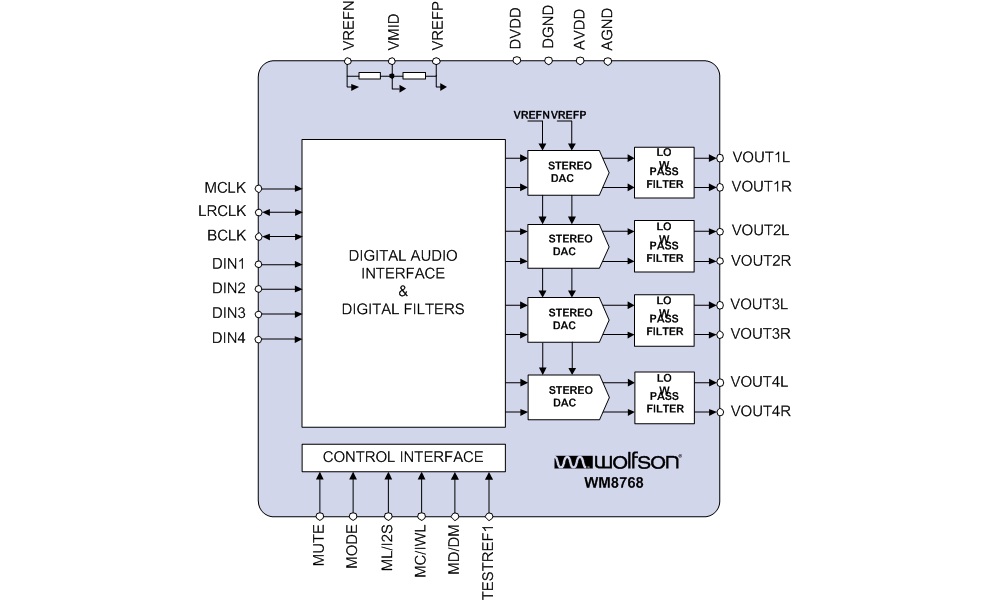

WM8768 - 产品及功能框图：
WM8768 - 8-Channel DAC with Volume Control
WM8768是Cirrus Logic公司的一款D/A 转换器产品，WM8768是8-Channel DAC with Volume Control，本站介绍了WM8768的封装应用图解、特点和优点、功能等，并给出了与WM8768相关的Cirrus Logic元器件型号供参考。
WM8768 - 8-Channel DAC with Volume Control - D/A 转换器 - 音频 - Cirrus Logic
WM8768 - 产品描述
WM8768 - 产品特性
- 8-ChannelDACwithPCM
- AudioPerformance
- 103dBSNR(‘A’weighted@48kHz)DAC
- DACSamplingFrequency:8kHz–192kHz
- three-wireSPISerialorHardwareControlInterface
- ProgrammableAudioDataInterfaceModes
- I2S,Left,RightJustifiedorDSP
- 16/20/24/32bitWordLengths
- FourindependentstereoDACoutputswithindependentdigitalvolumecontrols
- MasterorSlaveAudioDataInterface
- 2.7Vto5.5Vanalog,2.7Vto3.6VDigitalSupplyOperation
- 28pinSSOPPackage
WM8768 - 规格表
| Part | Channels | Resolution (bits) | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog Outputs | Power Supply (V) | Output Level (Vrms) | Comments | Package |
|---|---|---|---|---|---|---|---|---|---|---|
| WM8768 | 8 | 24 | 103 | -90 | 192 | Single-ended | VA=2.7to5.5; VD=2.7to3.6 | 1 | Digital volume control, HW and 3-wire SW control | 28 SSOP |
