WM8750技术文档下载：

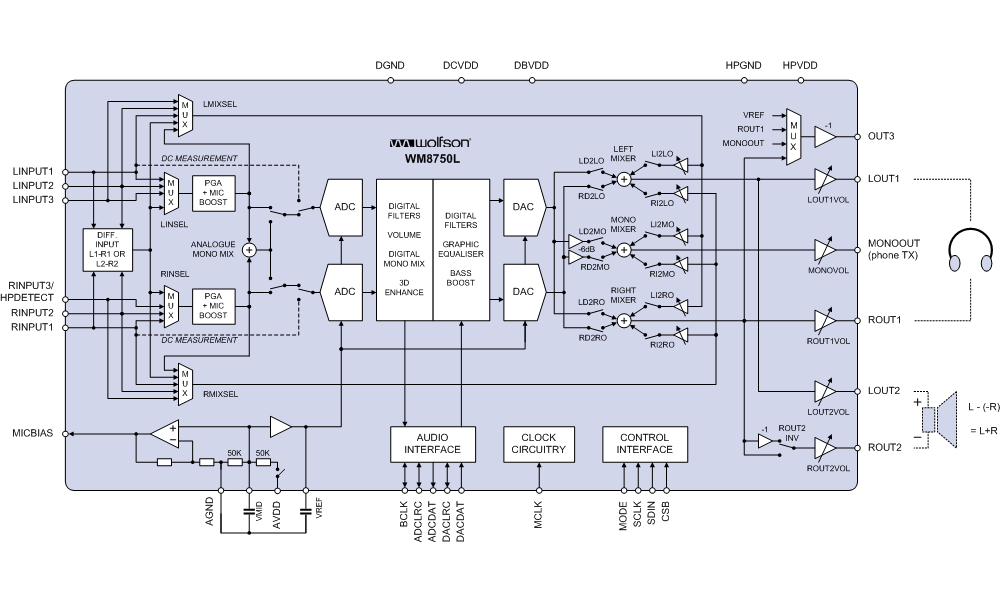

WM8750 - 产品及功能框图：
WM8750 - Codec with Speaker Driver
WM8750是Cirrus Logic公司的一款低功耗音频转换器产品，WM8750是Codec with Speaker Driver，本站介绍了WM8750的封装应用图解、特点和优点、功能等，并给出了与WM8750相关的Cirrus Logic元器件型号供参考。
WM8750 - Codec with Speaker Driver - 低功耗音频转换器 - 音频 - Cirrus Logic
WM8750 - 产品描述
WM8750 - 产品特性
- DACSNR98dB(‘A’weighted),THD-95Bat48kHz,3.3V
- ADCSNR95dB(‘A’weighted),THD-90dBat48kHz,3.3V
- CompleteStereo/MonoMicrophoneInterface
- ProgrammableALC/NoiseGate
- On-chip400mWBTLSpeakerDriver(mono)
- On-chipHeadphoneDriver
- >40mWoutputpoweron16W/3.3V
- THD–80dBat20mW,SNR90dBwith16Wload
- NoDCblockingcapacitorsrequired(caplessmode)
- Separatelymixedmonooutput
- DigitalGraphicEqualiser
- LowPower
- 7mWstereoplayback(1.8V/1.5Vsupplies)
- 14mWrecord&playback(1.8V/1.5Vsupplies)
- LowSupplyVoltages
- analog1.8Vto3.6V
- Digitalcore:1.42Vto3.6V
- DigitalI/O:1.8Vto3.6V
- 256fs/384fsorUSBmasterclockrates:12MHz,24MHz
- Audiosamplerates:8,11.025,16,22.05,24,32,44.1,48,88.2,96kHzgeneratedinternallyfrommasterclock
- 5x5x0.9mmQFNPackage
WM8750 - 规格表
| Part | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog I/O | Power Supply (V) | Comments | Package |
|---|
