WM8711BL技术文档下载：

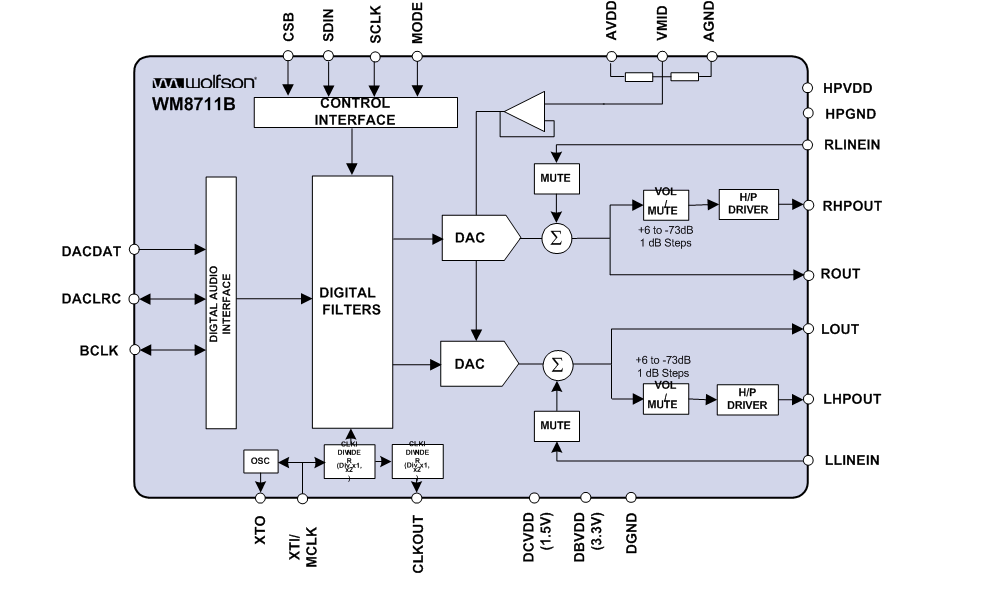

WM8711BL - 产品及功能框图：
WM8711BL - Stereo DAC with Headphone Driver
WM8711BL是Cirrus Logic公司的一款D/A 转换器产品，WM8711BL是Stereo DAC with Headphone Driver，本站介绍了WM8711BL的封装应用图解、特点和优点、功能等，并给出了与WM8711BL相关的Cirrus Logic元器件型号供参考。
WM8711BL - Stereo DAC with Headphone Driver - D/A 转换器 - 音频 - Cirrus Logic
WM8711BL - 产品描述
WM8711BL - 产品特性
- AudioPerformance
- DACSNR97dB(‘A’weighted)atAVDD=3.3V
- DACSNR90dB(‘A’weighted)atAVDD=1.8V
- LowPowerHeadphonePlayback
- Downto6mWat1.8V
- 1.42–3.6VDigitalSupplyOperation
- 1.8–3.6VanalogSupplyOperation
- DACSamplingFrequency:8KHz–96KHz
- 2orthree-wireMPUSerialControlInterface
- ProgrammableAudioDataInterfaceModes
- I2S,Left,RightJustifiedorDSP
- 16/20/24/32bitWordLengths
- MasterorSlaveClockingMode
- StereoAudioOutputs
- OutputVolumeandMuteControls
- HighlyEfficientHeadphoneDriver
- 24-leadQFN(4x4x0.9mm)package
WM8711BL - 规格表
| Part | Channels | Resolution (bits) | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog Outputs | Power Supply (V) | Output Level (Vrms) | Comments | Package |
|---|---|---|---|---|---|---|---|---|---|---|
| WM8711BL | 2 | 24 | 90 | -86 | 8?96 | Single-ended | VA=1.8to3.6; VD=1.42to3.6 | 1 | Output volume and mute control, HP driver, Line-in to mixer, OSC | 24 QFN |
