WM8595技术文档下载：

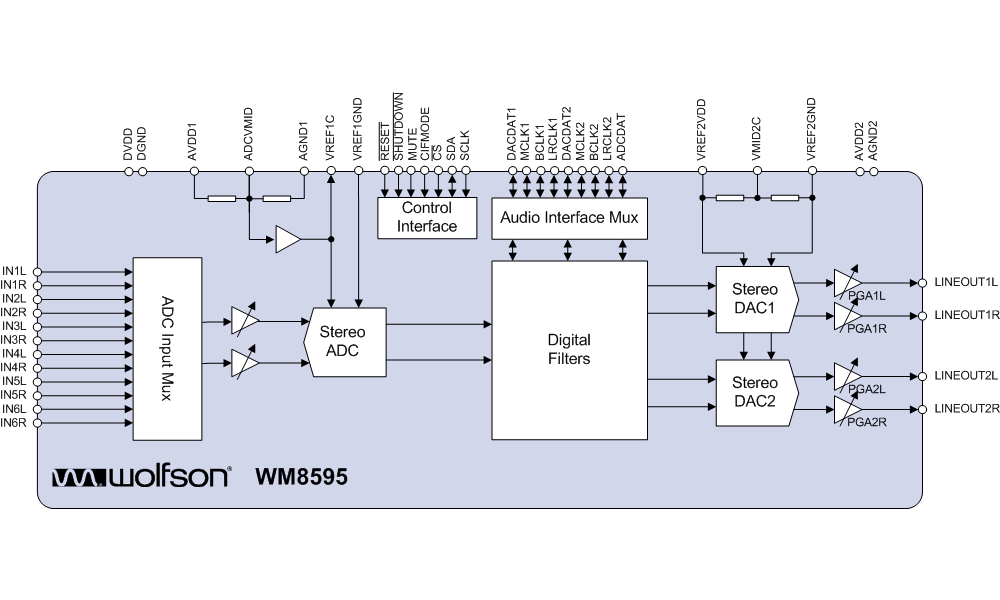

WM8595 - 产品及功能框图：
WM8595 - codec with Multi-Channel Analog and Digital Routing
WM8595是Cirrus Logic公司的一款多声道编解码器产品，WM8595是codec with Multi-Channel Analog and Digital Routing，本站介绍了WM8595的封装应用图解、特点和优点、功能等，并给出了与WM8595相关的Cirrus Logic元器件型号供参考。
WM8595 - codec with Multi-Channel Analog and Digital Routing - 多声道编解码器 - 编解码器 - Cirrus Logic
WM8595 - 产品描述
WM8595 - 产品特性
- Multi-channelcodecwith6stereoinputselectorand2stereooutputselector
- 4-channelDAC,2-channelADC
- 6x2VrmsstereoinputselectortoADC
- 2x2Vrmsstereooutput
- Audioperformance
- DAC:100dBSNRtypical(‘A’weighted@48kHz)
- DAC:-87dBTHDtypical
- ADC:96dBSNRtypical(‘A’weighted@48kHz)
- ADC:-80dBTHDtypical
- IndependentsamplingrateforADCandDACspossible
- DACssamplingfrequency32kHz–192kHz
- ADCsamplingfrequency32kHz–96kHz
- DACdigitalvolumecontrol+12dBto-100dBin0.5dBsteps
- ADCdigitalvolumecontrolfrom+30dBto-97dBin0.5dBsteps
- ADCinputanalogboostcontrol,selectablefrom0dB,+3dB,+6dBand+12dB
- Outputanalogvolumecontrol+6dBto-73.5dBin0.5dBstepswithzerocrossorsoftramptopreventpopsandclicks
- Digitalmultiplexertointerfacetomultipledigitalsources–DSP,HDMI,memorycard
- two-wireandthree-wireserialcontrolinterfacewithreadbackandhardwarereset,muteandemergencyshutdownpins
- ADCfeaturesmasterorslaveclockingmodes
- Programmableformataudiodatainterfacemodes
- I2S,LJ,RJ,DSP
- 3.3V/9Vanalog,3.3Vdigitalsupplyoperation
- 48-pinQFNpackage
WM8595 - 规格表
| Part | Channels | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog I/O | Power Supply (V) | Comments | Package |
|---|---|---|---|---|---|---|---|---|
| WM8595 | 12in; 4out | 100DAC; 96ADC | -87DAC; -80ADC | 192 | Single-ended | VA=8.1to9.9; VD=2.7to3.63 | 2 VRMS line-level drivers, digital multiplexer, 2/3-wire SW control | 48 QFN |
