WM5102技术文档下载：

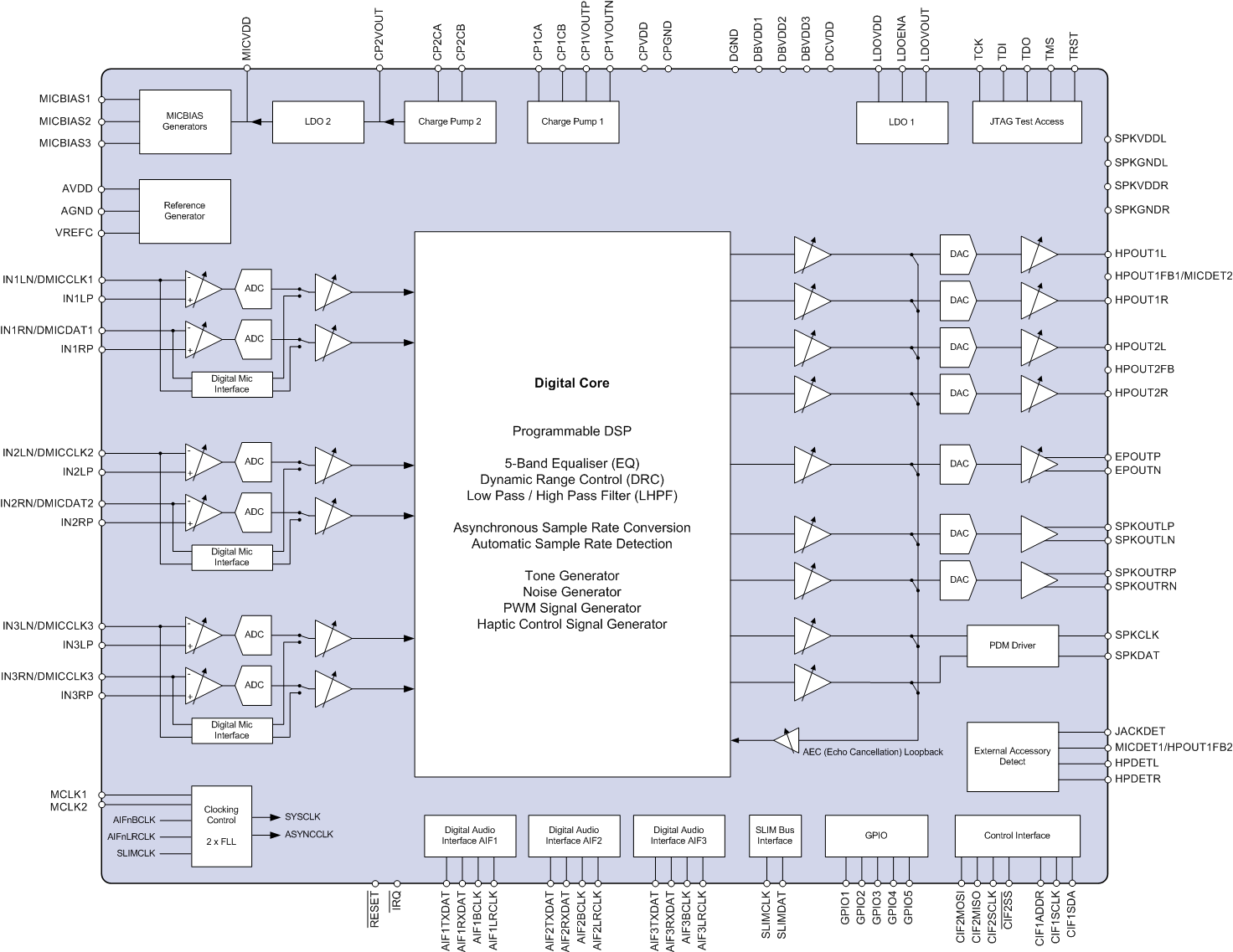

WM5102 - 产品及功能框图：
WM5102 - Smart Codec with Voice Processor DSP
WM5102是Cirrus Logic公司的一款编解码器产品，WM5102是Smart Codec with Voice Processor DSP，本站介绍了WM5102的封装应用图解、特点和优点、功能等，并给出了与WM5102相关的Cirrus Logic元器件型号供参考。
WM5102 - Smart Codec with Voice Processor DSP - 编解码器 - 音频 - Cirrus Logic
WM5102 - 产品描述
WM5102 - 产品特性
- SmartcodecwithintegratedvoiceprocessorDSP
- ProgrammableDSPcapabilityforaudioprocessing
- Fixedfunctionsignalprocessingfunctions
- Windnoise,sidetoneandotherprogrammablefilters
- DynamicRangeControl,FullyparametricEQs
- Tone,Noise,PWM,Hapticcontrolsignalgenerators
- Multi-channelasynchronoussamplerateconversion
- Integrated6/7channel24-bithi-fiaudiohubcodec
- 6ADCs,96dBSNRmicrophoneinput(48kHz)
- 7DACs,113dBSNRheadphoneplayback(48kHz)
- Audioinputs
- Upto6analogordigitalmicrophoneinputs
- Single-endedordifferentialmic/lineinputs
- Multi-purposeheadphone/earpiece/lineoutputdrivers
- 2stereooutputpaths
- 29mWinto32?loadat0.1%THD+N
- 100mWinto32?BTLloadat5%THD+N
- 6.5mWtypicalheadphoneplaybackpowerconsumption
- Popsuppressionfunctions
- 2.3μVRMSnoisefloor(A-weighted)
- MonoBTLearpieceoutputdriver
- 2x2WstereoClassDspeakeroutputdrivers
- Directdriveofexternalhapticsvibeactuators
- Two-channeldigitalspeaker(PDM)interface
- SLIMbusaudioandcontrolinterface
- 3fulldigitalaudiointerfaces
- Standardsampleratesfrom4kHzupto192kHz
- Ultrasonicaccessoryfunctionsupport
- TDMsupportonallAIFs
- 8channelinputandoutputonAIF1
- Flexibleclocking,derivedfromMCLKn,BCLKnorSLIMbus
- 2low-powerFLLssupportreferenceclocksdownto32kHz
- Advancedaccessorydetectionfunctions
- Low-powerstandbymodeandconfigurablewake-up
- Configurablefunctionson5GPIOpins
- IntegratedLDOregulatorsandchargepumps
- Supportforsingle1.8Vsupplyoperation
- SmallW-CSPpackage,0.4mmpitch
WM5102 - 规格表
| Part | DACs / ADCs | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog I/O | Power Supply (V) | DSP and Other Features | Package |
|---|---|---|---|---|---|---|---|---|
| WM5102 | 7/ 6 | 113DAC; 96ADC | -89DAC; -88ADC | 192 | Single-ended Differential | VA=1.7to5.5; VD=1.14to1.9 | Dynamic range control, parametric EQ, DSP filters, ASRC, haptic control signal generator, SLIMbus interface, 3x digital audio interface, HP/speaker amps, dual FLL | 137 WLCSP |
