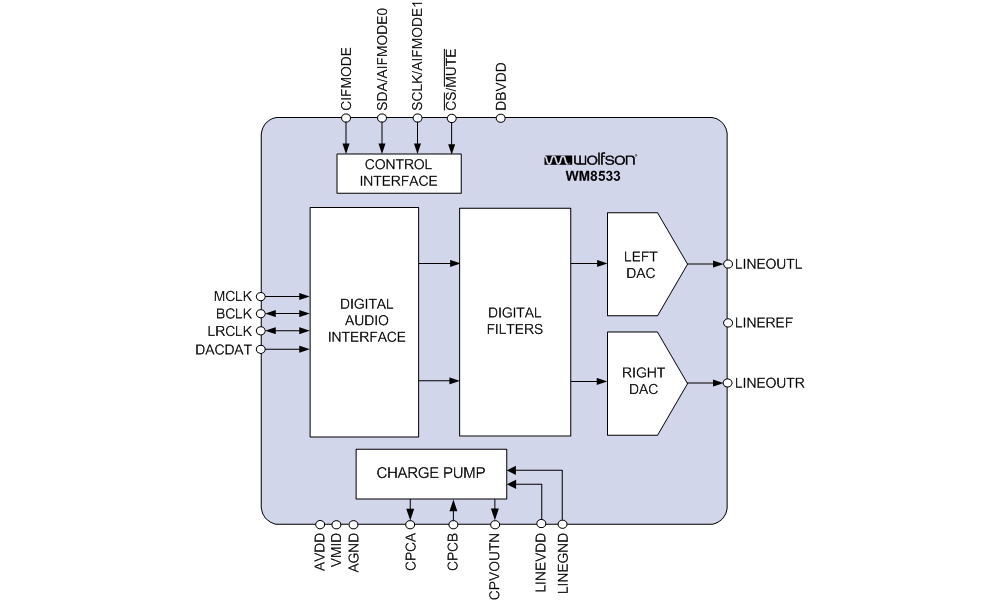

WM8533 - 产品及功能框图：
WM8533 - Stereo Charge Pump DAC with Ground Ref 2.1Vrms Line Driver
WM8533是Cirrus Logic公司的一款D/A 转换器产品，WM8533是Stereo Charge Pump DAC with Ground Ref 2.1Vrms Line Driver，本站介绍了WM8533的封装应用图解、特点和优点、功能等，并给出了与WM8533相关的Cirrus Logic元器件型号供参考。
WM8533 - Stereo Charge Pump DAC with Ground Ref 2.1Vrms Line Driver - D/A 转换器 - 音频 - Cirrus Logic
WM8533 - 产品描述
WM8533 - 产品特性
- HighperformancestereoDACwithgroundreferencedlinedriver
- Audioperformance
- 106dBSNR('A-weighted')
- -89dBTHD@-1dBFS
- Digitalvolumecontrolrangingfrom-100dBto+12dB
- 120dBmuteattenuation
- Allcommonsampleratesfrom8kHzto192kHzsupported
- I2C/SPIcompatibleandhardwarecontrolmodes
- Dataformats:LJ,RJ,I2S,DSP
- De-emphasissupported
- Maximum1mVDCoffsetonlineoutputs
- Pop/clicksuppressedpowerup/downsequencer
- AVDDandLINEVDD+3.3V±10%allowingsinglesupply
- DBVDDsupplysupports+1.8Vor+3.3VdigitalI/O
- 1.842x1.772mm20-ballWCSP
WM8533 - 规格表
| Part | Channels | Resolution (bits) | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog Outputs | Power Supply (V) | Output Level (Vrms) | Comments | Package |
|---|---|---|---|---|---|---|---|---|---|---|
| WM8533 | 2 | 24 | 106 | -89 | 192 | Single-ended | VA=2.97to3.63 (Typ 3.3); VD=1.62to3.63 (Typ 1.8) | 2.1 | HW and 2/3-wire SW control | 20 WLCSP |
