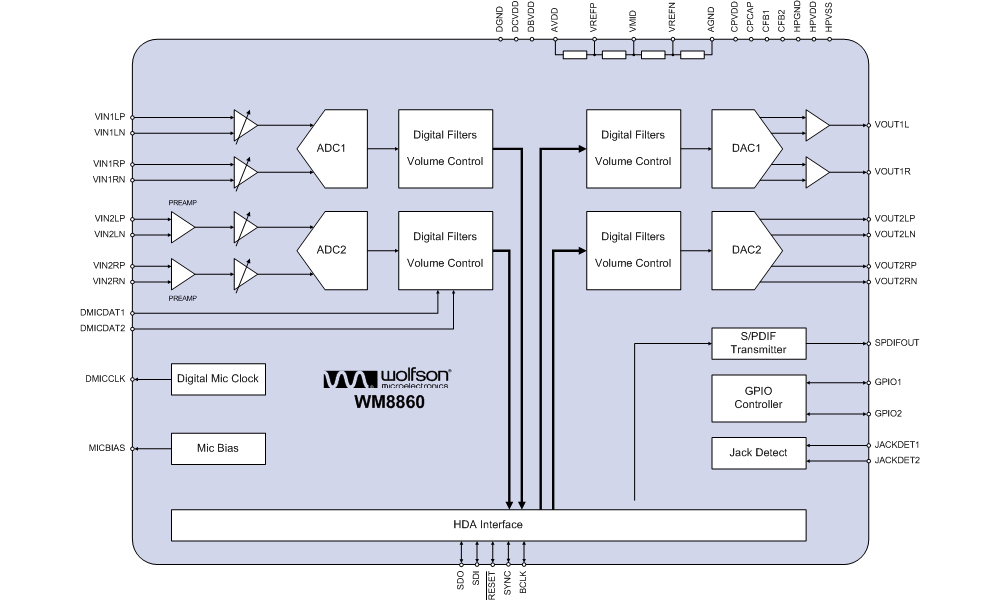

WM8860 - 产品及功能框图：
WM8860 - Multi-Channel HDA Codec with S/PDIF Transceiver
WM8860是Cirrus Logic公司的一款无产品，WM8860是Multi-Channel HDA Codec with S/PDIF Transceiver，本站介绍了WM8860的封装应用图解、特点和优点、功能等，并给出了与WM8860相关的Cirrus Logic元器件型号供参考。
WM8860 - Multi-Channel HDA Codec with S/PDIF Transceiver - 无 - 863 - Cirrus Logic
WM8860 - 产品描述
WM8860 - 产品特性
- Multi-channelhighdefinitionaudiocodec
- FullycompatiblewithIntelHighDefinitionAudioRevision1.0
- 4-ChannelDAC,4-channelADC
- DACsamplingfrequency8kHz-192kHz
- ADCsamplingfrequency8kHz-96kHz
- DACPerformance:
- SNR108dB(‘A’weighted)
- SNR105dB(nonweighted)
- THD-96dB(at0dBFS)
- ADCPerformance:
- SNR105dB(‘A’weighted)
- SNR102dB(nonweighted)
- THD-95dB(at-1dBFS)
- Ground-referencedstereoheadphonedriver
- Differentiallineinputs/outputs
- Stereomicrophoneinterfacewithintegratedpre-amp
- Multi-channeldigitalmicrophoneinterface
- IEC-60958-3compatibleS/PDIFtransmitter
- Jackdetectandloadimpedancesensing
- Beepgenerator
- GPIOfunctionality
- IEEE-754Singleprecision32-bitfloatingpointsupport
- Powersupplies
- Digitalcore:1.62V–1.98V
- Digitalbuffer:2.97V–3.63V
- Analog:4.5V–5.5V
- Chargepump:4.5V–5.5V
- 48-pin7mmx7mmQFNpackage
WM8860 - 规格表
