WM8776技术文档下载：

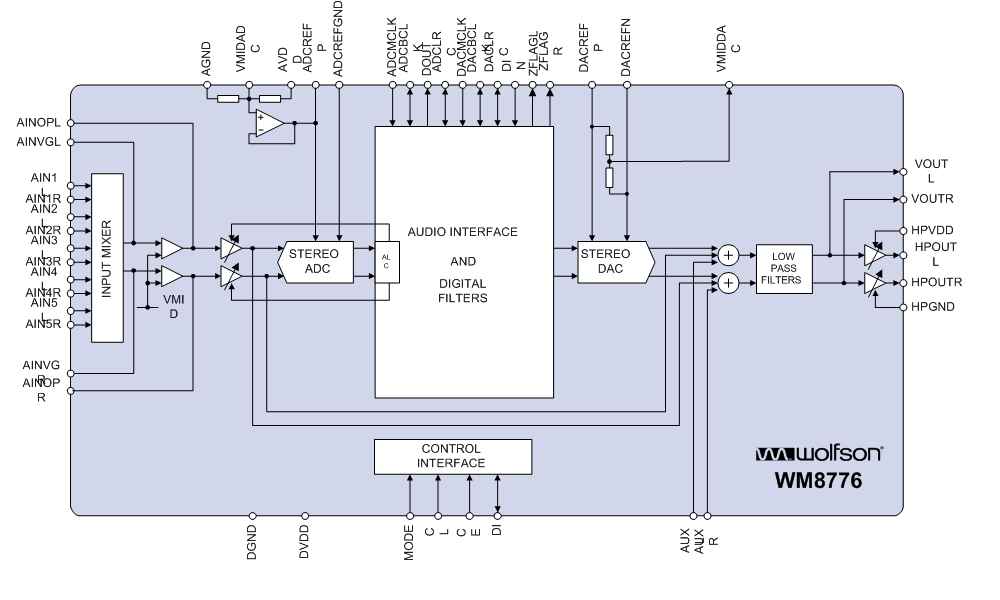

WM8776 - 产品及功能框图：
WM8776 - codec with 5 Input Selector
WM8776是Cirrus Logic公司的一款单声道/立体声编解码器产品，WM8776是codec with 5 Input Selector，本站介绍了WM8776的封装应用图解、特点和优点、功能等，并给出了与WM8776相关的Cirrus Logic元器件型号供参考。
WM8776 - codec with 5 Input Selector - 单声道/立体声编解码器 - 编解码器 - Cirrus Logic
WM8776 - 产品描述
WM8776 - 产品特性
- AudioPerformance
- 108dBSNR(‘A’weighted@48kHz)DAC
- 102dBSNR(‘A’weighted@48kHz)ADC
- DACSamplingFrequency:32kHz–192kHz
- ADCSamplingFrequency:32kHz–96kHz
- FiveStereoADCInputswithanalogGainAdjustfrom+24dBto–21dBin0.5dBSteps
- ProgrammableLimiterorAutomaticLevelControl(ALC)
- StereoDACwithIndependentanalogandDigitalVolumeControls
- StereoHeadphoneandLineOutput
- three-wireSPICompatibleortwo-wireSoftwareSerialControlInterface
- MasterorSlaveClockingMode
- ProgrammableAudioDataInterfaceModes
- I2S,Left,RightJustifiedorDSP
- 16/20/24/32bitWordLengths
- analogBypassPathFeature
- SelectableAUXInputtotheVolumeControls
- 2.7Vto5.5Vanalog,2.7Vto3.6VDigitalSupplyOperation
WM8776 - 规格表
| Part | Channels | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog I/O | Power Supply (V) | Comments | Package |
|---|---|---|---|---|---|---|---|---|
| WM8776 | 10in; 2out | 108DAC; 102ADC | -97DAC; -95ADC | 192 | Differential | VA=2.7to5.5; VD=2.7to3.6 | H/P amplifier ALC, 2/3-wire SW control | 48 TQFP |
