WM8510技术文档下载：

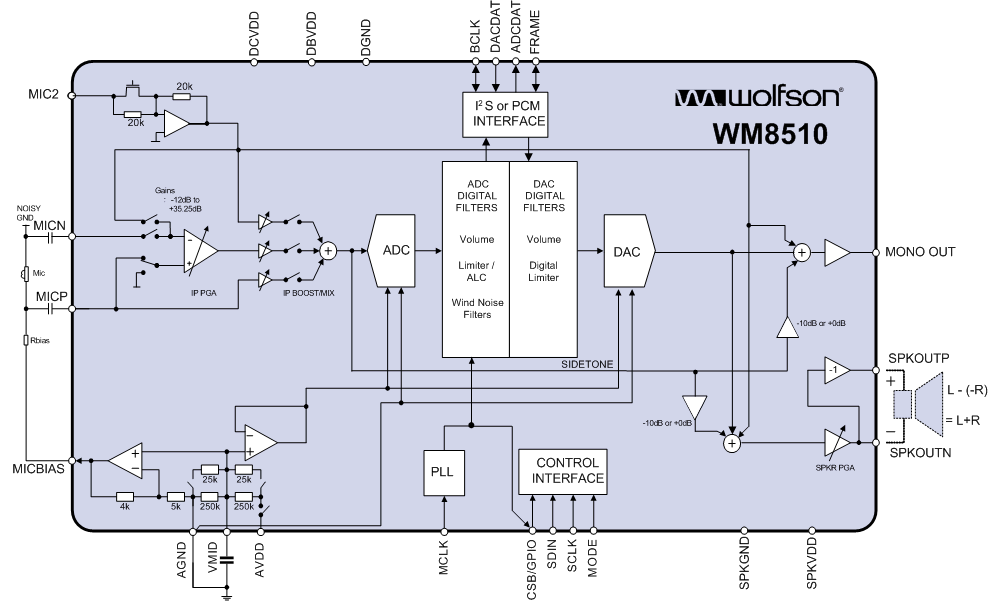

WM8510 - 产品及功能框图：
WM8510 - Codec with Speaker Driver
WM8510是Cirrus Logic公司的一款单声道/立体声编解码器产品，WM8510是Codec with Speaker Driver，本站介绍了WM8510的封装应用图解、特点和优点、功能等，并给出了与WM8510相关的Cirrus Logic元器件型号供参考。
WM8510 - Codec with Speaker Driver - 单声道/立体声编解码器 - 编解码器 - Cirrus Logic
WM8510 - 产品描述
WM8510 - 产品特性
Monocodec:- Audiosamplerates:8,11.025,16,22.05,24,32,44.1,48kHz
- DACSNR93dB,THD-84dB(‘A’-weighted@8–48kHz)
- ADCSNR90dB,THD-80dB(‘A’-weighted@8–48kHz)
- On-chipHeadphone/SpeakerDriverwith‘cap-less’connect
- 40mWoutputpowerinto16?/3.3VSPKVDD
- BTLspeakerdrive0.8Winto8#8486;/5VSPKVDD
- EarpieceLineoutput
- Multipleanaloginputs,plusanalogbypasspath(0or-10dB)
- MicPreamps
- TwoMicrophoneInterfaces
- Onepseudo-differentialinputwithcommonmoderejection
- Onesingleendedinput
- Programmablepreampgain
- ProgrammableALC/NoiseGateinADCpath
- Low-noisebiassuppliedformicrophone
- DigitalPlaybackLimiter
- ProgrammableADCHighPassFilter(windnoisereduction)
- ProgrammableADCNotchFilter
- On-chipPLL
- Lowpower,lowvoltage
- 2.5Vto3.6V(digitalsupplies:1.71Vto3.6V)
- powerconsumption<10mWall-on48kHzmode
- 28leadSSOPpackage
WM8510 - 规格表
| Part | Channels | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog I/O | Power Supply (V) | Comments | Package |
|---|---|---|---|---|---|---|---|---|
| WM8510 | 1in; 1out | 93DAC; 90ADC | -84DAC; -80ADC | 48 | Differential ADC Single-ended DAC | VA=2.5to5.5; VD=1.71to3.6 | ALC volume control, DSP filters, 2/3-wire SW control | 28 SSOP |
