CS35L33技术文档下载：

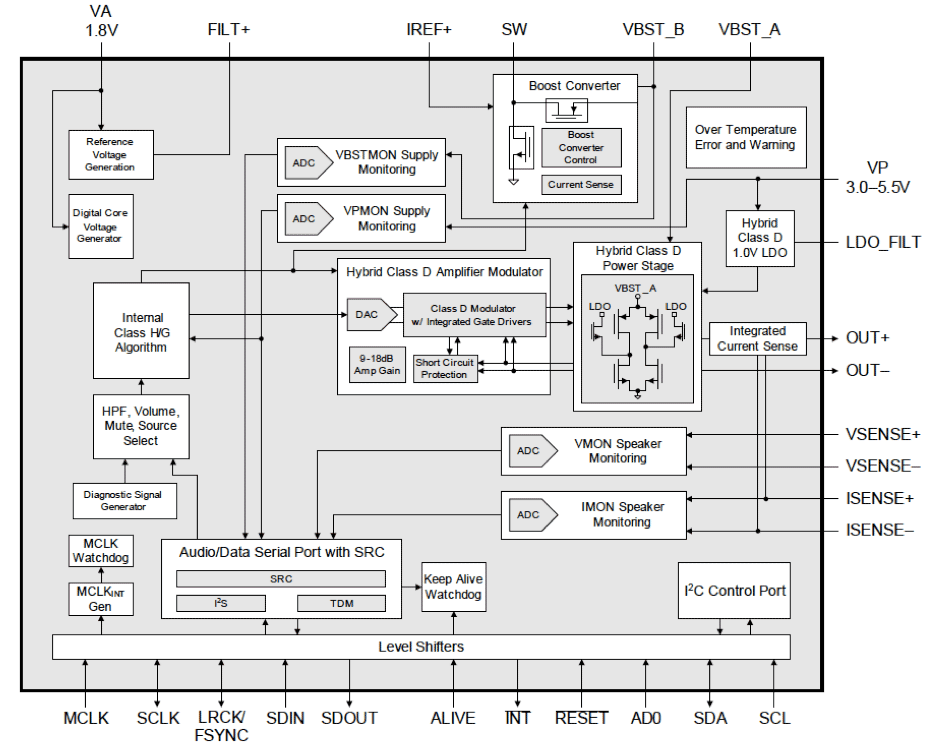

CS35L33 - 产品及功能框图：
CS35L33 - 8 V Boosted Class-D Amplifier
CS35L33是Cirrus Logic公司的一款低功耗音频转换器产品，CS35L33是8 V Boosted Class-D Amplifier，本站介绍了CS35L33的封装应用图解、特点和优点、功能等，并给出了与CS35L33相关的Cirrus Logic元器件型号供参考。
CS35L33 - 8 V Boosted Class-D Amplifier - 低功耗音频转换器 - 数字音频放大器产品 - Cirrus Logic
CS35L33 - 产品描述
CS35L33 - 产品特性
- SpeakerAmplifierFeatures
- Digitalinputviamulti-bitDelta-SigmamonoDAC
- AdvancedΔΣclosed-looparchitecture
- 4.4Winto8?@10%THD+N
- 3.5Winto8?@1%THD+N
- BoostConverterFeatures
- Programmableboostvoltagesofupto8.0V
- IntegratedboostandcommutationFETs
- HighbandwidthallowsClassHtrackingofaudiosignal
- MonitoringandReportingFeatures
- VPandVBSTsupplyvoltagemonitoringandreporting
- Amplifieroutputvoltagemonitoring
- Integratedamplifieroutputcurrentmonitoring
- Monitoringdataoutputviaaudio/dataserialport
- ProtectionFeatures
- Masterclock(MCLK)andexternal“keepalive”watchdog
- ICover-temperaturefoldbackandprotection
- Amplifiershort-circuitprotection
- SystemFeatures
- Programmableandmaskableinterrupts
- Supportsbothaudio-basedMCLKratesandUSB-basedMCLKrates
- Supportsawiderangeofsamplerates,from8kHzto48kHz,including44.100kHz
- Dual-modeaudio/dataserialport(ADSP)
- I2Ccontrolport
- Availablein42-ballWLCSP
CS35L33 - 规格表
| Part | Input | Channels | Output Power (W) | SNR (dB) | THD+N 1W | Power Supply (V) | Comments | Package |
|---|---|---|---|---|---|---|---|---|
| CS35L33 | I2S, TDM | 1x Boosted Mono Class-D Speaker Driver | 4.4W into 8 ohm | 95 | 0.02 | VP=3to5.5; VA=1.71to1.89 | 8 V boost controller, speaker current and voltage monitoring, I2S and I2C interfaces | 42 WLCSP |
