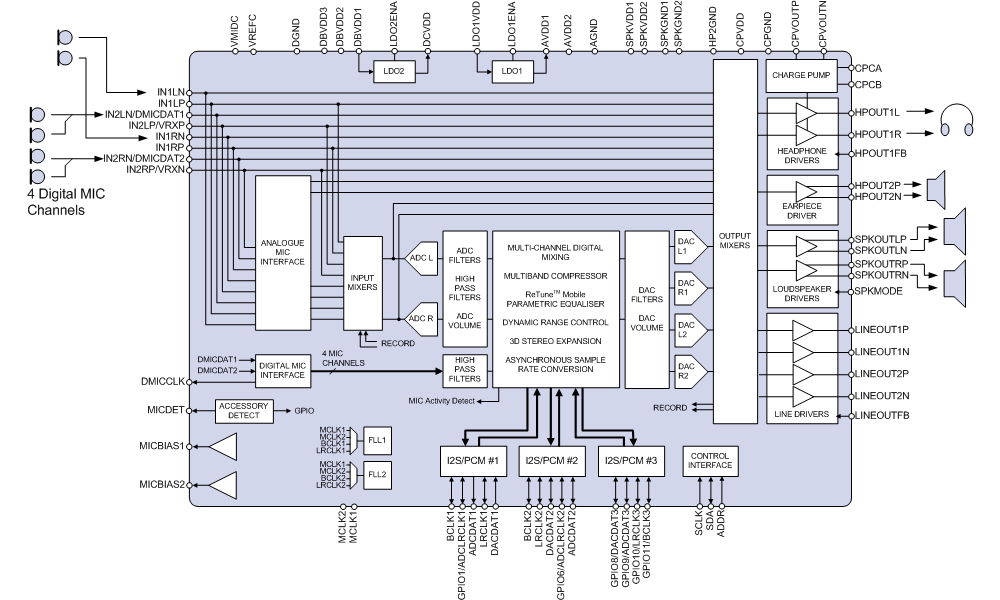

WM8958 - 产品及功能框图：
WM8958 - Multi-channel Codec with 3 Digital Audio Interfaces and Speaker-enhancement DSP
WM8958是Cirrus Logic公司的一款低功耗音频转换器产品，WM8958是Multi-channel Codec with 3 Digital Audio Interfaces and Speaker-enhancement DSP，本站介绍了WM8958的封装应用图解、特点和优点、功能等，并给出了与WM8958相关的Cirrus Logic元器件型号供参考。
WM8958 - Multi-channel Codec with 3 Digital Audio Interfaces and Speaker-enhancement DSP - 低功耗音频转换器 - 音频 - Cirrus Logic
WM8958 - 产品描述
WM8958 - 产品特性
- 24-bit4-channelhi-fiDACand2-channelhi-fiADC
- 100dBSNRduringDACplayback(‘A’weighted)
- SmartMICinterface
- Power,clockinganddatainputforuptofourdigitalMICs
- HighperformanceanalogMICinterface
- MICactivitydetect&interruptallowsprocessortosleep
- 2Wstereo(2x2W)classD/ABspeakerdriver
- CaplessClassWheadphonedrivers
- Integratedchargepump
- 5.3mWtotalpowerforDACplaybacktoheadphones
- 4Lineoutputs(single-endedordifferential)
- BTLEarpiecedriver
- Digitalaudiointerfacesformulti-processorarchitecture
- Asynchronousstereoduplexsamplerateconversion
- Powerfulmixinganddigitalloopbackfunctions
- ReTuneMobile5-band,6-channelparametricEQ
- Multibandcompressoranddynamicrangecontroller
- DualFLLprovidesallnecessaryclocks
- Self-clockingmodesallowprocessortosleep
- Allstandardsampleratesfrom8kHzto96kHz
- Activenoisereductioncircuits
- DCoffsetcorrectionremovespopsandclicks
- Groundloopnoisecancellation
- IntegratedLDOregulators
- 72-ballW-CSPpackage(4.516x4.258x0.698mm)
WM8958 - 规格表
| Part | Dynamic Range (dB) | THD+N (dB) | Sample Rate (kHz) | Analog I/O | Power Supply (V) | Comments | Package |
|---|---|---|---|---|---|---|---|
| WM8958 | 100DAC; 94ADC | -86DAC; -80ADC | 96 | Single-ended/ Differential | VA=1.71to5.5; VD=1to3.6 | ReTune Mobile, MBC, parametric EQ, dynamic range controller, ASRC, 4x DMIC interface, HP/speaker amps, dual FLL | 72 WLCSP |
